-65%M281CB1 - 200 AMP Metered Service Entrance - Ring Type - Surface Mount—
$351.21
$122.92The Story
Product Description
Ring Type, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Surface Mount Box
The M281CB1 is a Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.

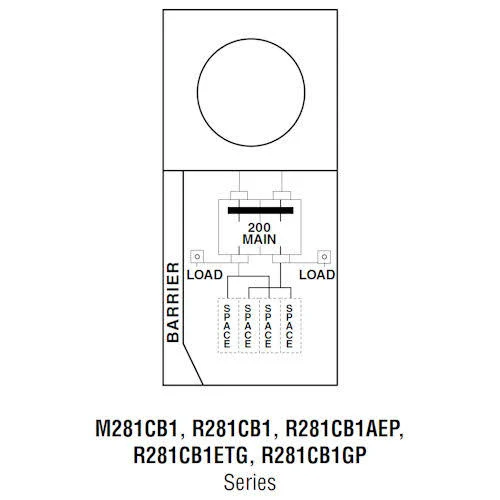

This mobile home surface box by Midwest is 200 amp manufactured for surface mount applications. The service entrance box is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Specifications:
| UPC: | 784567585155 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Catalog Number: | M281CB1 |
| Brand Name: | Midwest Electric |
| Type: | Metered Ring Type |
| Current Rating: | 200 Amp |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1 200A SURFACE METERED 14X28 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567585155 |
