R281C1P6H Midwest 200 Amp Manufactured Home Pedestal - Ringless style—
$624.24
The Story
Product Description
Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Pedestal with Horn Bypass
The R281C1P6h is a Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.

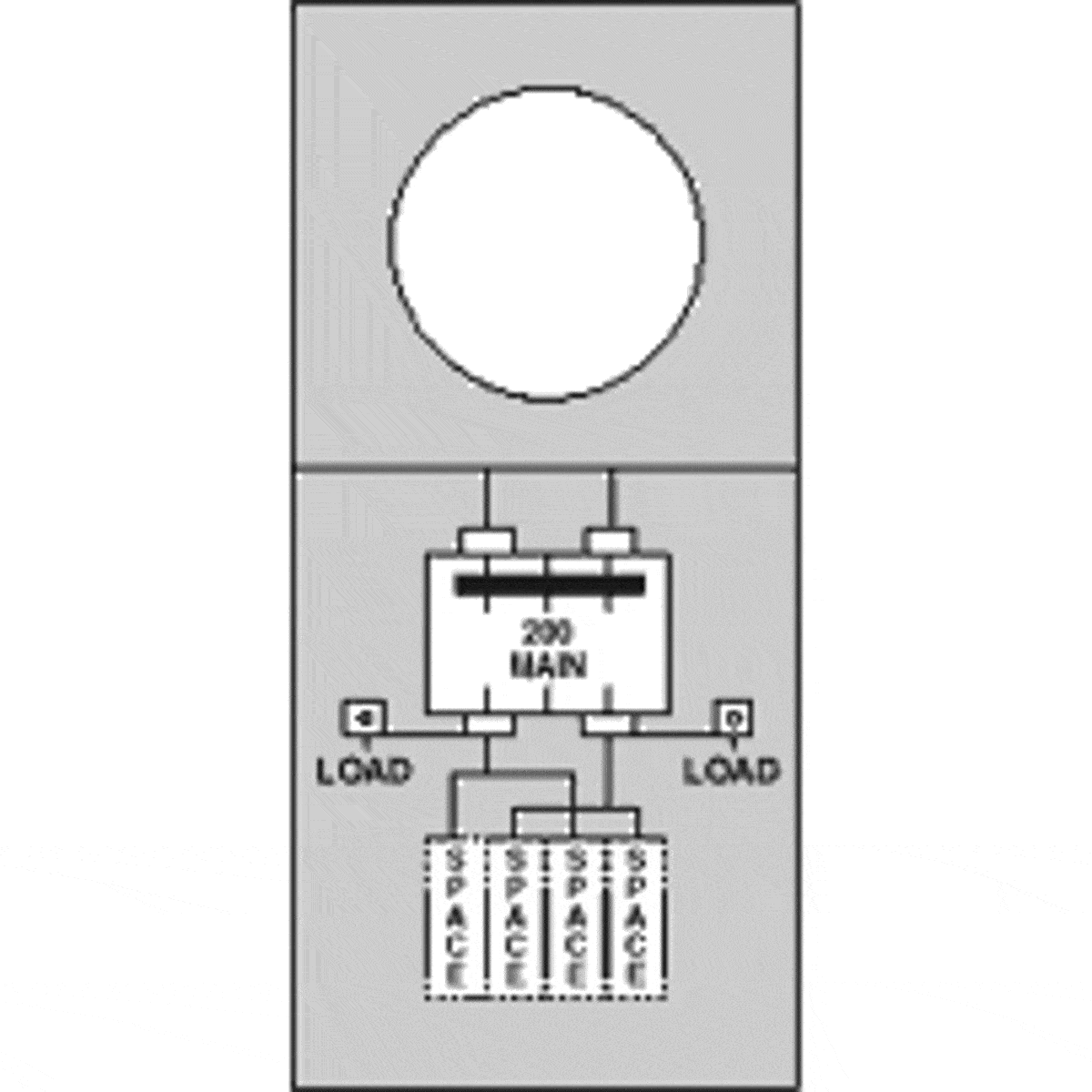

This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for direct buyr. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Product Specifications
| UPC: | 784567588101 |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-5/16 Inch W x 4-3/4 Inch D x 30-1/4 Inch H |
| Catalog Number: | R281C1P6H |
| Type: | Metered Ringless - Horn Bypass |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| Wire Size: | 6 AWG to 350 KCMIL (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Durable Polyester Powder Coated |
| Mounting: | Pedestal |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 6 AWG to 350 kcmil (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; Pedestal Mounting; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-5/16 Inch W X 4-3/4 Inch D X 30-1/4 Inch H |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281C1P6H 200A HEADPOST METERED |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588101 |
